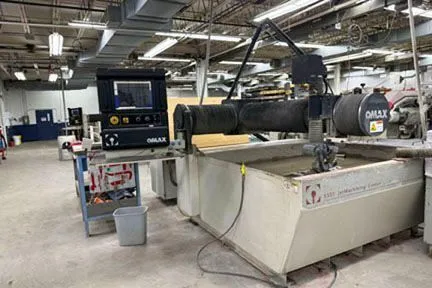

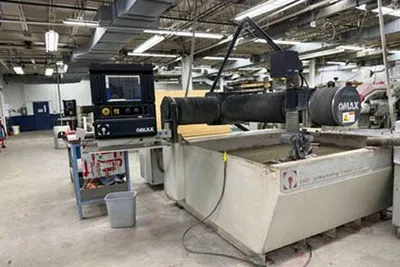

OMAX Model 5555 Precision WaterJet With OMAX 50 HP Variable Frequency Drive Pump - Year 2013-Approx. 8,800 Hours
Have one to sell?
ConditionUsed
1 available
MACHINE CONFIGURATION:
Table Size: 65"W x 80"L
Cutting Capacity: 55" x 55"
Table Weight Capacity: 250 lbs./Sq Ft
Machine Slat Height: 4"
Machine Weight Empty: 6300 lbs.
Operating Weight: 13,000 lbs.
Machine Height: 118"
NOZZLE CONFIGURATION:
Jewel: .014" - .016" Orifice
Mixing Tube: .030" - .042" Carbide Ceramic
Garnet Flow: .75 - 1.8 lbs/minute
DRIVE SYSTEM:
Closed Loop Digital Drives
Brushless AC Servo Motors
Pre-Loaded Ball Screws, Linear Bearings, Hardened & Ground Ways
Round Bellows Completely Enclosing Each Axis

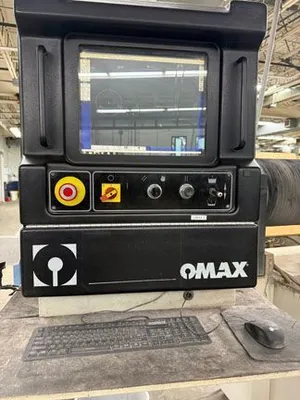

CONTROL:
PC Based Control
Windows Software
Omax Full Integrated CAD/CAM Software
Select Multiple Home Positions
Import Over 40 File Formats
Full Material Library
6 Cut Qualities
Heads Up Traversing
Array Nesting
Auto Tool Path Generation
Material Stack Height Calculator
Intelli-Trace - Dynamic Pierce, Corner Passing, Tilt Forward Automatic Functions

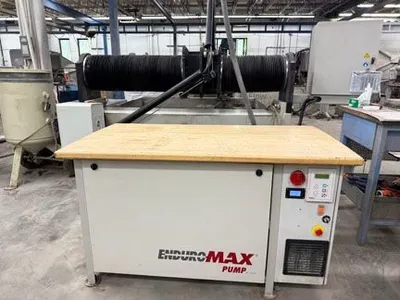

PUMP:
Omax 5060 50 HP EnduroMax Pump 3/60/460 Volt
Variable Frequency Drive Pump
High/Low Pressure Pierce/Cut for Soft & Brittle Material
Less Electric & Water than Intensifier Pump
Easy to Maintain
EQUIPPED WITH:

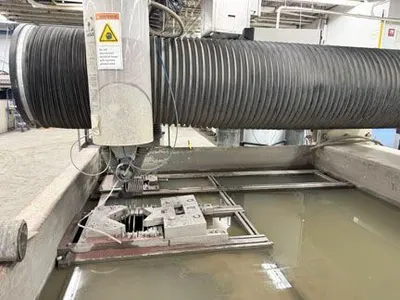

Tilt-A-Jet Taper Compensation Head

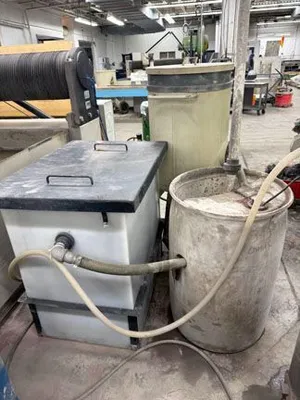

600 lbs. Garnet Hopper
Water Level Control
Drain Water Laminar Filter
OPTIONAL INSTALLATION, SETUP, TRAINING, MAINTENANCE (NOT INCLUDED)
We have over 28 years of Omax waterjet experience with (5) factory trained technicians on staff. We can offer setup & training on the machine, additional factory accessories, preventive maintenance, and factory parts. We can customize a program around an individual's need.
Preventive Maintenance: Yearly Maintenance, Pump rebuilding, Machine Cutting Issues resolved
Machine Laser Calibration
Operator Training equal to New Machine Purchase
Over $250,000 in Omax Parts in Stock - St. Louis, MO
MACHINE CONFIGURATION:
Table Size: 65"W x 80"L
Cutting Capacity: 55" x 55"
Table Weight Capacity: 250 lbs./Sq Ft
Machine Slat Height: 4"
Machine Weight Empty: 6300 lbs.
Operating Weight: 13,000 lbs.
Machine Height: 118"
NOZZLE CONFIGURATION:
Jewel: .014" - .016" Orifice
Mixing Tube: .030" - .042" Carbide Ceramic
Garnet Flow: .75 - 1.8 lbs/minute
DRIVE SYSTEM:
Closed Loop Digital Drives
Brushless AC Servo Motors
Pre-Loaded Ball Screws, Linear Bearings, Hardened & Ground Ways
Round Bellows Completely Enclosing Each Axis
CONTROL:
PC Based Control
Windows Software
Omax Full Integrated CAD/CAM Software
Select Multiple Home Positions
Import Over 40 File Formats
Full Material Library
6 Cut Qualities
Heads Up Traversing
Array Nesting
Auto Tool Path Generation
Material Stack Height Calculator
Intelli-Trace - Dynamic Pierce, Corner Passing, Tilt Forward Automatic Functions
PUMP:
Omax 5060 50 HP EnduroMax Pump 3/60/460 Volt
Variable Frequency Drive Pump
High/Low Pressure Pierce/Cut for Soft & Brittle Material
Less Electric & Water than Intensifier Pump
Easy to Maintain
EQUIPPED WITH:
Tilt-A-Jet Taper Compensation Head
600 lbs. Garnet Hopper
Water Level Control
Drain Water Laminar Filter
OPTIONAL INSTALLATION, SETUP, TRAINING, MAINTENANCE (NOT INCLUDED)
We have over 28 years of Omax waterjet experience with (5) factory trained technicians on staff. We can offer setup & training on the machine, additional factory accessories, preventive maintenance, and factory parts. We can customize a program around an individual's need.
Preventive Maintenance: Yearly Maintenance, Pump rebuilding, Machine Cutting Issues resolved
Machine Laser Calibration
Operator Training equal to New Machine Purchase
Over $250,000 in Omax Parts in Stock - St. Louis, MO
