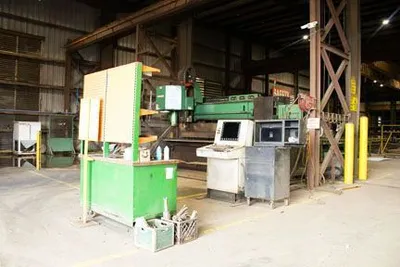

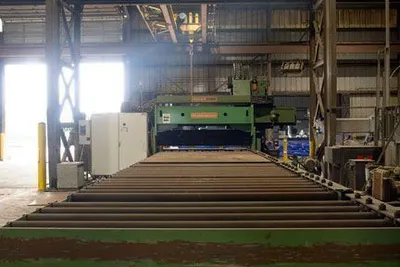

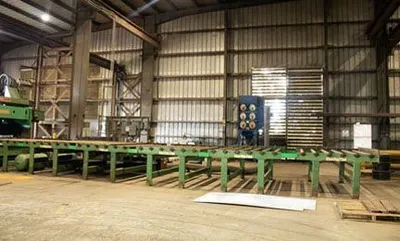

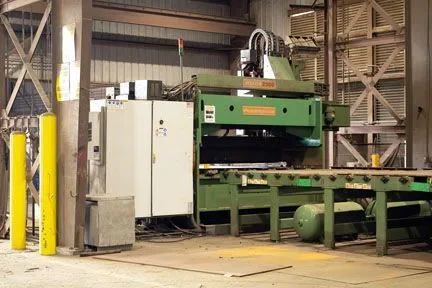

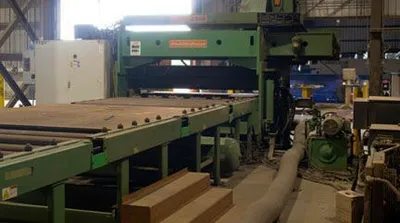

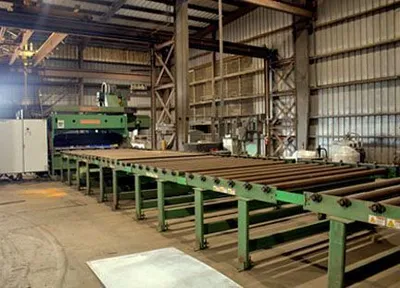

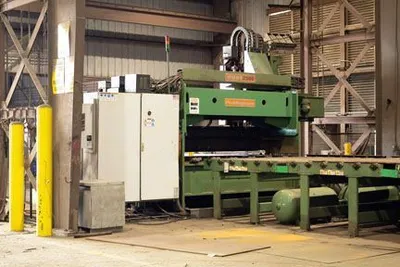

Peddinghaus Model HSFDB-2500/B CNC Plate Processing System 96” x 480” Envelope- 2015

Description

2015 Peddinghaus HSFDB-B CNC Plate Processing System designed for high-speed drilling, milling, tapping, countersinking, plasma cutting, and oxy-fuel cutting of heavy steel plate. Features automated material handling, CNC controls, and integrated drilling and cutting capabilities for structural steel fabrication.

Specifications:

Cutting Envelope: 96"x480"
Plate Drilling Range: 0.25" - 3"

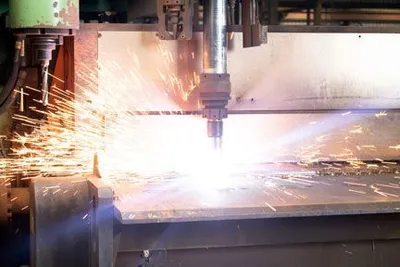

Plasma Cutting Range: 0.25" - 2-1/2"
Spindle Power: 48 HP
Spindle Speed: 0-2,250 RPM
Spindle Taper: CAT 50

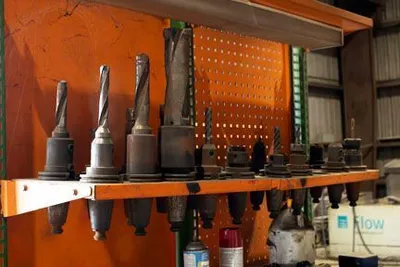

Tool Changer: 8 Stations (Removed)** Tooling must be loaded manually**
Machine Weight: Approximately 35,488 lbs

Equipped With:

High-Speed Carbide Drilling

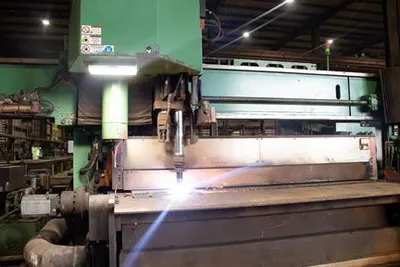

Hypertherm HPR400XD Plasma Cutting System
Oxy-Fuel Cutting System
Automatic Tool-Length Measurement
SignoScript Carbide Scribing System
Superior Clamping System

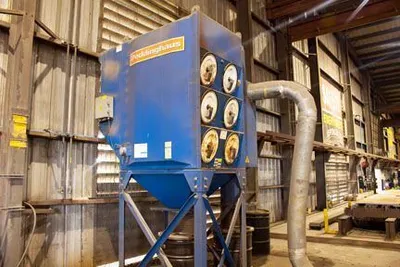

Dust Collector

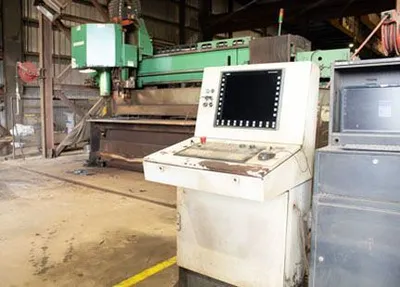

Peddinghaus Control
Milling Capability
Minimum Quantity Lubrication (MQL)
Through-Tool Lubrication System
