2023 STUDER FAVORIT - CNC Universal Cylindrical IDOD Grinder - Very Low Hours

Description

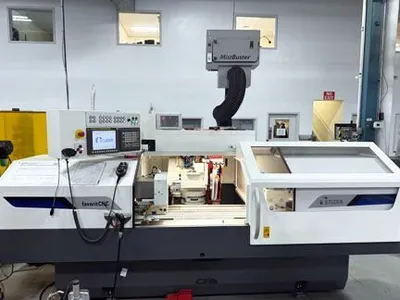

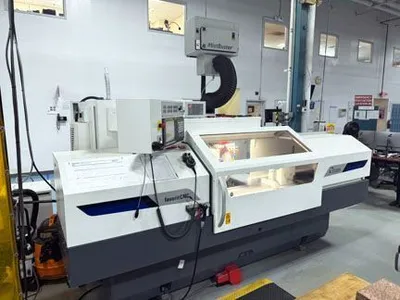

2023 Studer Favorite CNC Universal Cylindrical IDOD Grinding Machine- 13.8" Swing X 39.4" Centers. With a Fanuc CNC Control, External and Internal Grinding Capabilities, Universal Workhead, Tailstock, Mag and Three-Jaw Chuck, MistBuster Mist Collection System, Coolant System, Grinding Wheel Dressing Equipment and Manuals.

Specifications:

Distance Between Centers: 1000 mm (39.4")
Center Height: 175 mm (6.9")
Swing Over Table: 350 mm (13.8")
Maximum Workpiece Weight: 120 kg (264 lbs.)
Maximum Grinding Diameter: 349 mm (13.75")
X-Axis Travel: 285 mm (11.2")
Z-Axis Travel: 1,150 mm (45.3")
X-Axis Feed Rate: Up to 10,000 mm/min
Z-Axis Feed Rate: Up to 20,000 mm/min
Grinding Wheel Diameter: 500 mm (20")
Grinding Wheel Bore: 203 mm (8")
Grinding Spindle Power: Up to 11.5 kW (15.4 HP)
Grinding Wheel Surface Speed: Up to 50 m/sec
Universal Workhead Speed: 1-1500 RPM
Universal Workhead Taper: MT5
Tailstock Taper: MT4
Table Swivel: Up to 8.5°
Overall Dimensions (L x W x H): 185" x 137.4" x 86.6"
Approximate Machine Weight: 5,300 kg (11,685 lbs.)

Equipped With:

Fanuc CNC Control
STUDER favorit CNC Operator Interface

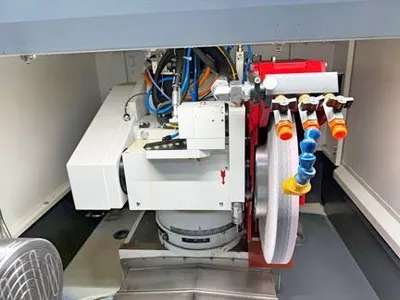

External Grinding Wheelhead

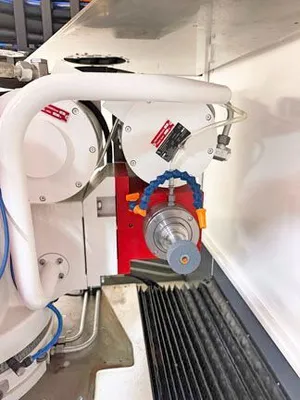

Internal Grinding Attachment

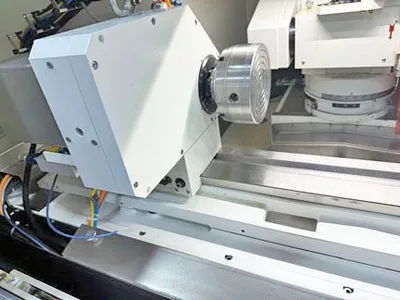

Universal Workhead

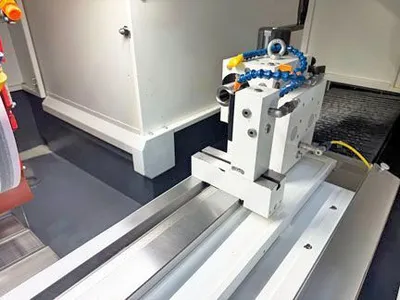

Tailstock

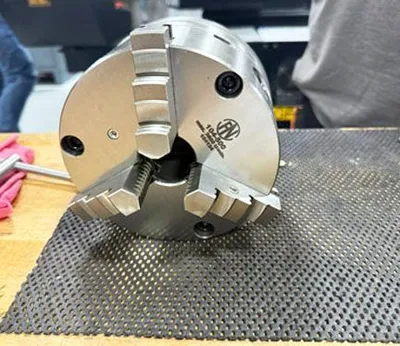

Mag and Three-Jaw Chuck

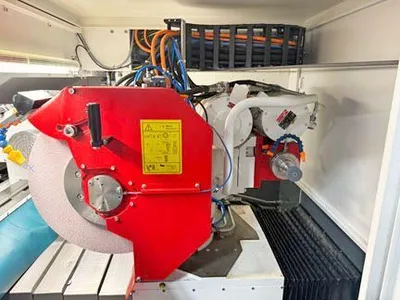

Grinding Wheel and Wheel Guard
Grinding Wheel Dressing Equipment

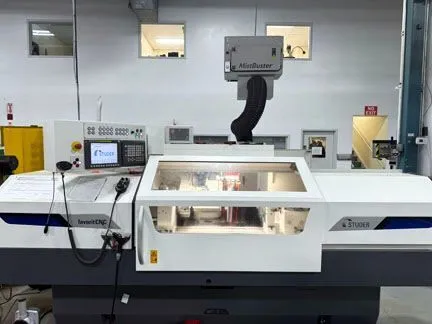

MistBuster Mist Collection System

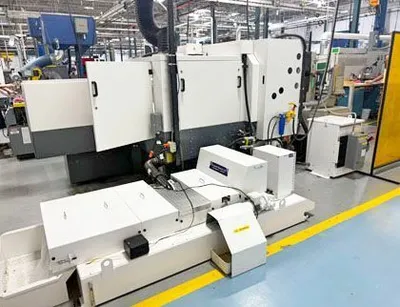

Coolant System with Filtration
Coolant Delivery Nozzles

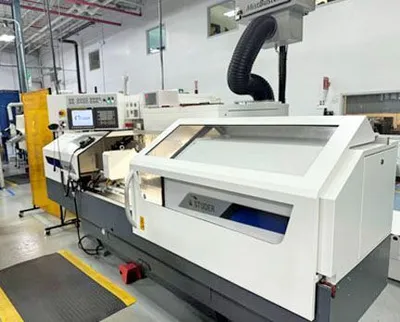

Fully Enclosed Grinding Area
Sliding Safety Enclosure
Electrical Cabinet Air Conditioning Unit
STUDER Operating Manuals
