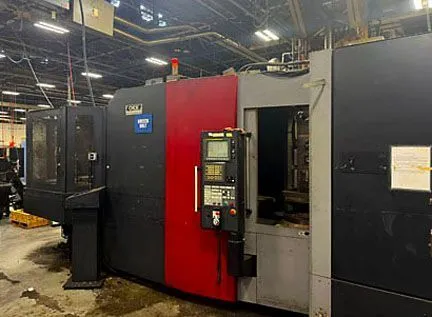

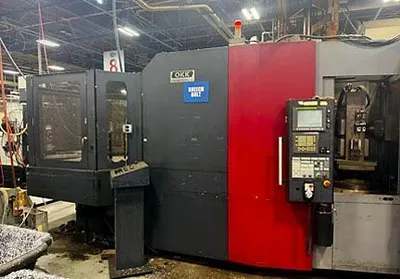

The OKK HM500S/40 is a CNC horizontal machining center
equipped with an 8-station automatic pallet pool, designed
for efficient, high production machining.
Specifications:

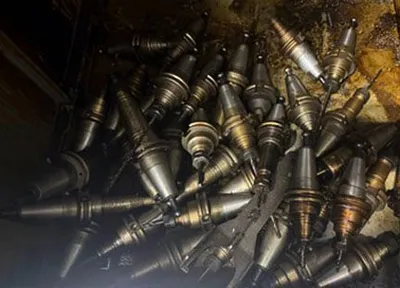

Spindle Taper: CAT 40
Maximum Spindle Speed: 10,000 RPM
X-Axis Travel: 24.80"
Y-Axis Travel: 24.41"
Z-Axis Travel: 27.95"
Pallet Size: 19.69"X19.69"
Maximum Pallet Load: 992 lbs.
Electrical: AC 200/200/220V, 3-Phase, 50/60Hz
Overall floor space: Approx. 206"x148"
Machine height: 112"
Machine weight: approx. 26,896 lbs
Dimensions and weight are approximate and exclude
the 8-station pallet pool.
Equipped With:

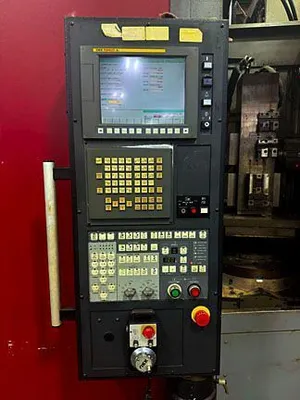

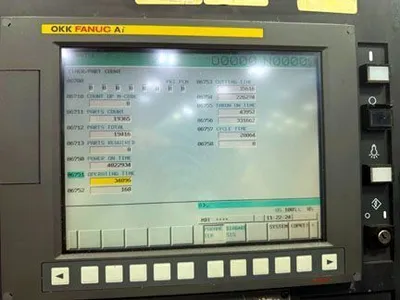

OKK Fanuc Ai CNC Control

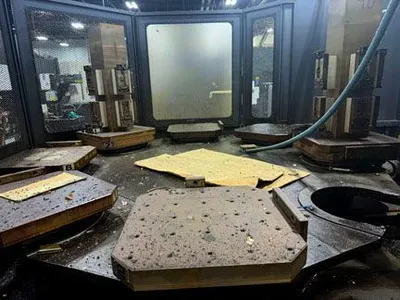

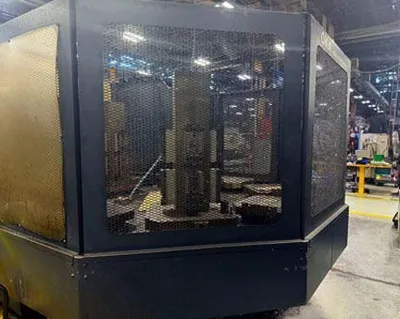

8-Station Automatic Pallet Pool

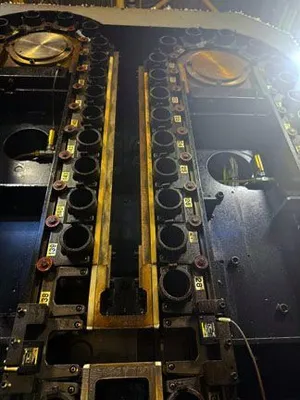

Automatic Tool Changer
Rotary Pallet Table
Separate Pallet Pool Control Station

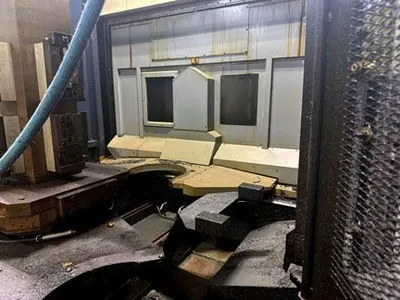

Multiple Tombstone-Style Workholding Fixtures
Number of Tool Stations- 162
