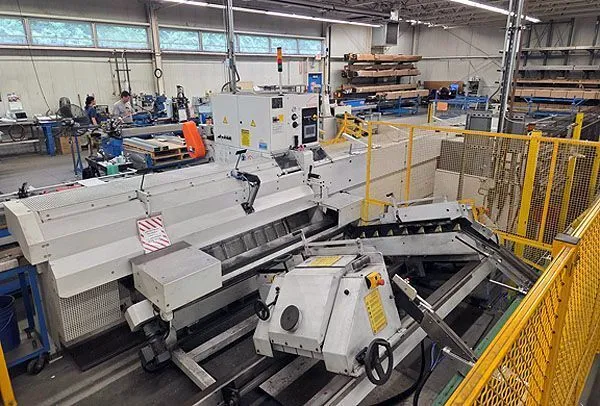

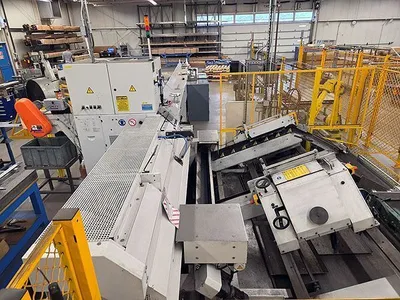

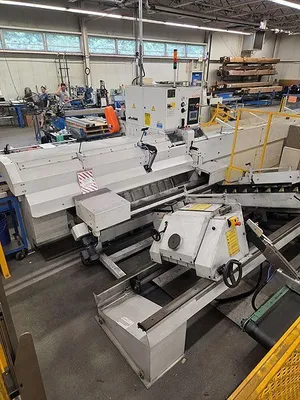

Kasto Automatic Cold Sawing Machine, Model WA – 90R/S - YR. 2018, #3233

Description

Wire Brush Deburring Not included

Material: stainless steel tubing
Size: 1.250" sq., 1.500" sq. + 1" x 2" rectangle
Wall thickness: 16 + 18 GA
Starting length: 20'
Cut length: up to 79"
CUTTING CAPACITIES WITH A SAW BLADE DI!A. OF:10¾" 12½"
Rounds
Standard and heavy walled tubes 2 3/4" 3 1/2"
Thin walled tubes, using form jaws 2 1/2" 3 1/2"
Squares
Tubes 2½" 3½"
Rectangles
Tubes and shapes 4½"x2" 4½"x3"
Minimum round or square -- ½"
CUTTING SPEEDS: (SFPM)

Infinitely variable,
frequency controlled 125 - 650 145 - 750

CUTTING FEEDS: Infinitely variable from l" - 80" per minute.

DESCRIPTION AND SPECIFICATIONS:
Machine base of welded steel construction. Free chip flow design with funneling designed for easy mounting of a drag or hinge belt conveyor. (Base contains the hydraulic oil reservoir).
Optimum cutting path through pivot location under the clamping area. The saw carriage with its massive pivot arm is supported by heavy tapered roller bearings lubricated for life.
Vertical and horizontal clamping with over-reaching horizontal clamp to hold the cut piece. (Special form jaws available for thin-walled tubing, reduced capacity when using form jaws.)
The feed cylinder and saw blade are on the same plane to avoid any lateral forces. With the cylinder mounted above the saw blade at a 1.6:1 lever ratio, maximum rigidity is developed in that the feed pressure is less at the cylinder than on the tooling. Saw carriage feed is infinitely adjustable from 1" to 80" per minute.

ELECTRICAL EQUIPMENT:
Saw drive motor, 7.5 KW (10 HP), frequency controlled.
Hydraulic pump drive motor, 1.4/1.8 KW (1.9/2.4 HP), 3 phase, 60 Hertz.
Electric control panel with a Siemens S7-300 programmable controller, interlocked magnetic starters, overload protection for all motors, mounted and wired in a gasketed enclosure with disconnect switch. A Siemens Touch operator interface panel is mounted convenient to the operator.

Transformer for connection to 460 Volt, 3 phase, 60 Hertz.

SAW BLADES:
Supatec - High Cobalt Alloy/TiCN Coated
Solid HSS Blade
10¾" (275mm) x .098" (2.5mm)
32/4/9/50mm
Supatec - High Cobalt Alloy/TiCN Coated
Solid HSS Blade
12½" (315mm) x .098" (2.5mm)
321419150mm

Equipped with:
Chip conveyor, Drag type
Central guide rail adjustment
Discharge conveyor NC controlled
Air mist coolant system
Approximately 35 saw blades, 6 need to be sharpened
