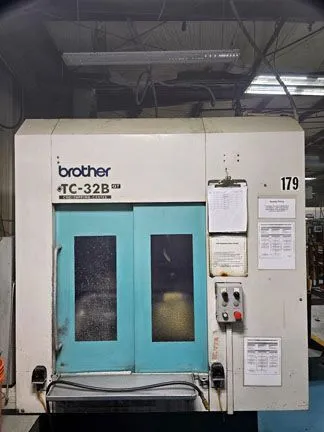

Brother Model TC-32B (QT) CNC Drilling & Tapping Machine, YR. 2005 - #3229

Description

Specifications:
Pallet of Misc: Length: 36.00" Width: 48.00" Height: 48.00"
Machine Travels (X/Y/Z): 21.7" x 15.7" x 16.3"
Number of Pallets: (2)
Pallet Change Style: 180 Degree Rotational Index Style
Pallet Size: (2) 23.5" x 16.7"
Spindle Taper: BT-30
Spindle Speeds: 16-16,000 RPM
Spindle Drive: 10 HP (Continuous)
Rapid Traverse (X/Y/Z): 2,756 IPM
Tool changer Style: Twin Arm
Tool changer Capacity: 26 Tool Stations
Max Pallet Load: 441 Lbs. Per Pallet
Rigid Tapping Speed: Max 8,000 RPM
Cutting Feed Rates: .04 - 787.4 IPM

Equipped With:

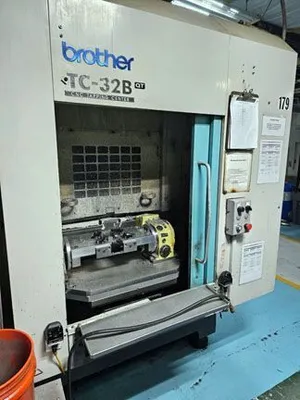

Nikken 4th Axis Rotary Table
Rotating Pallets

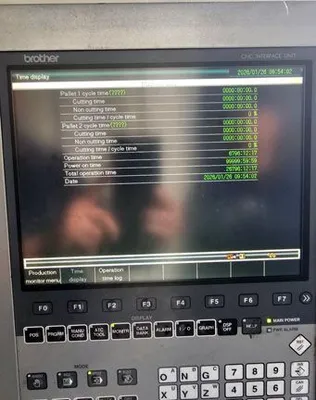

Brother COO Control
Coolant Tank & Pump

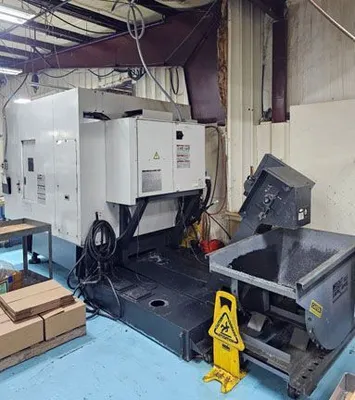

Chip Conveyor

Approx. Weight 12,500 LBS.
Approx. Dimensions: Machine: Length: 123.00" Width: 75.00" Height: 103.00"
Approx. Dimensions: Chip Conveyor & Coolant Tank: Length: 67.00" Width: 160.00" Height: 70.00"
