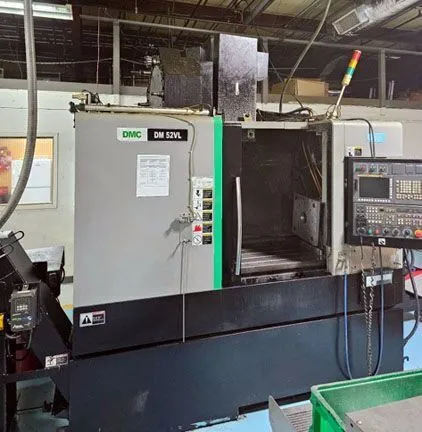

DMC 52 VL-1 Vertical Machining Center 4th Axis YR. 2017- VERY LOW HOURS - 3232

Description

20 HP 40" x 20" Vertical Machining Center
Num. of Axes: 4
Operation Type: CNC

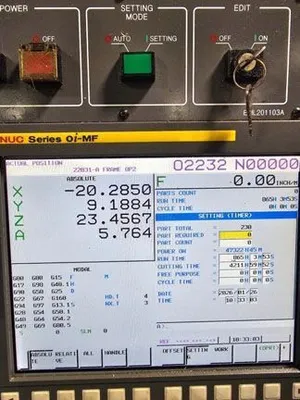

CNC Brand: Fanuc 0i-MF
Table/Work Support
Table Size L x W (in.): 40" x 20"
Max Workpiece Weight (lbs): 1,323
Spindle(s)
Direction: Vertical
Taper: #40 Big Plus
Top RPM: 8,000
Top RPM Opt: 10,000
HP (30 min rating): 20.00
Tooling
Tool Carrier: ATC
Num. Tools: 30
Tool Change Time (sec): 1.30
Tool Change Chip Time (sec): 3.90
Pallet Changer Available: Optional
Axes And Travels
Num. Axes: 4
U Axis: None
Travel Max Feed Rate Rapid Traverse
X1 40.160" 1,417ipm
Y1 20.470" 1,417ipm
Z1 20.080" 1,417ipm
