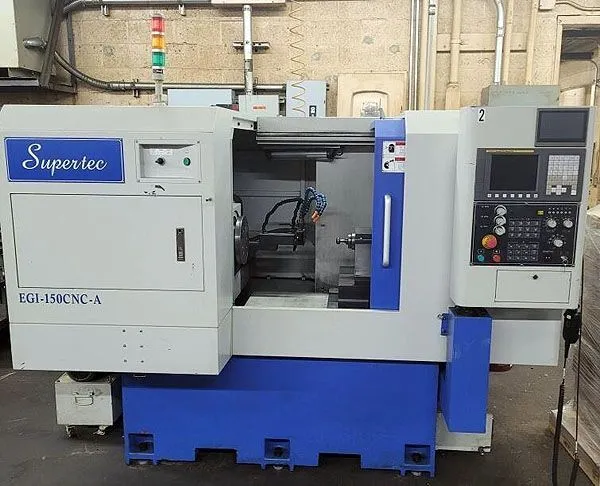

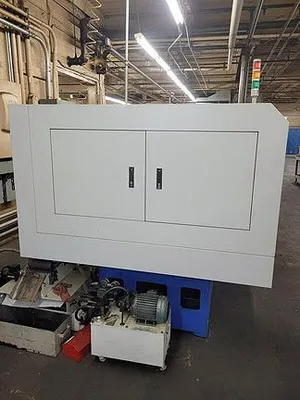

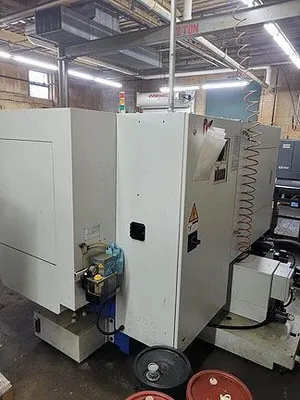

Supertec Model EGI-150 CNC A ID Grinder, 2015 3227

Description

Grinding Capacity
Grinding Diameter Range 0.16” ~ 9.4”
Max. Grinding Depth 5.9”
Swing over table 15”
Swing over Splash guard 12.6”

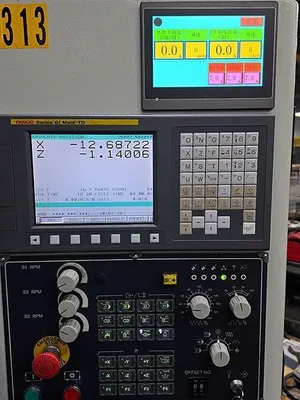

Control System

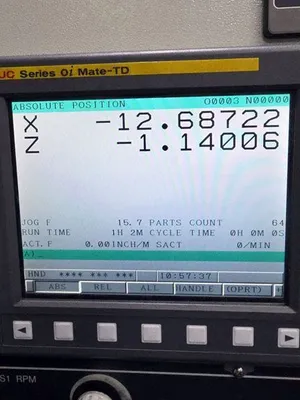

Control FANUC Oi-TD

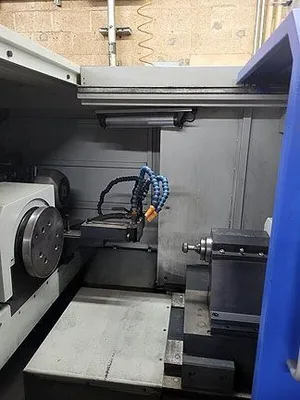

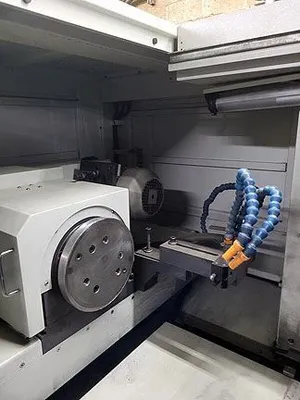

Workhead
Spindle Speed 30,000 rpm
X Axis feed rate 394 in/min
X Axis Travel 11.8”
Min. unit of X Axis movement 0.0001”
Workhead Swiveling angel -5 ~ +15”

Table
Max. feed rate of Y/Z Axis Z: 394 in/min
Y / Z Axis travel Z: 15.7” +3.9”
Min. unit of Y / Z Axis movement 0.0001”/0.0001”
Distance from wheel center to Floor 41.7”

Hydraulic System
Hyd. Oil Tank Capacity 7.5 Gal.

Cooling System
Coolant tank capacity 37.5 Gal

Drive Motor
Hyd. Pump motor 0.75 Kw (1HP)
Coolant Pump 0.18 Kw (1/4HP)
X / Y / Z Axis Servo motor X: 1.2Kw /Z: 1.2Kw
Grinding Wheel motor (B1/B2) (KW) B1: 2.2,2P(3HP)
Workhead Motor 2.2 Kw, 4P (3HP)

Other
Automatic lubricator 0.5 gal.

Machine Dimensions (LxWxH) 87” x 91” 67”
Machine Weight 6600 lbs

Equipped with

3 Jaw Chuck
Frequency inverter for X-axis workhead motor
Frequency inverter for Z-axis workhead motor
Heat exchanger for electrical Cabinet
CNC control
Hydraulic chuck
Rotary cylinder
Work light
Frequency inverter for Automatic lubricator
X-axis workhead motor

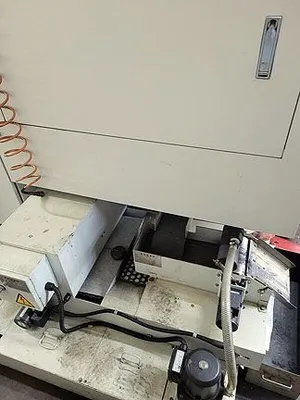

Coolant tank & pump
Grinding spindle on Z-axis
Frequency inverter for Three-color warning light
Z-axis workhead motor
