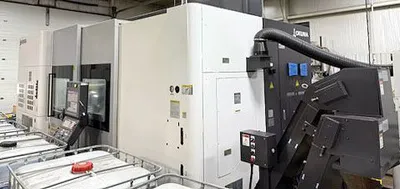

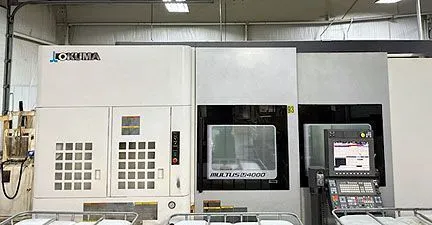

Okuma Multus U4000 2SW/1500 CNC Lathe - Multi-Axis Year 2015, 3208

Description

Maximum Turning Diameter: 25.59"
Maximum Distance Between Centers: 78.74"
Main Spindle Speed Range: 4,200 RPM
Milling Speeds: 12,000 RPM
Spindle Nose & Sub Spindle: JIS A2-8
X-Axis (Upper): 27.36"
X-Axis (Lower): 9.25"
Y-Axis Travel: +/- 11.8"
Z-Axis (Upper): 62.99"
Z-Axis (Lower): 60"
W-Axis (Sub Spindle): 60"
C-Axis Indexing: 0.001 Degree
B-Axis Indexing: 240 Deg.
Bar Capacity: 5.5"
Main Motor: 30 HP/ 20HP
Approximate Dimensions: 252" x 117" x 119"
Approximate Weight: 40,700 Lbs.
Equipped with: C- Axis on both spindles
Dual Spindles (main & Sub)
Big Bore
OSP-P300S-H CNC Control
80 Station Tool Changer
Auto Door with Dual Start
Touchsetter A for 2S
4’ Bar Support System
Y Axis
Chip Conveyor
Chip Blaster High Pressure Coolant
Collision Avoidance Software
