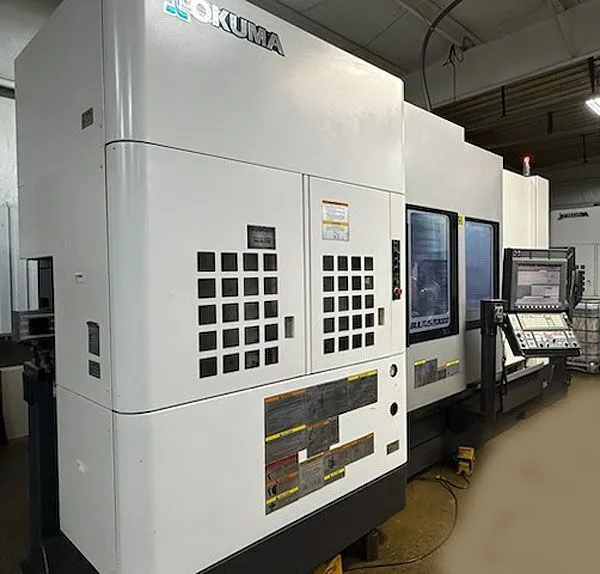

Okuma Multus U3000 2SW/1500 CNC Lathe - Multi-Axis with Milling Capability 2014, 3207

Description

Maximum Turning Diameter: 25.59"
Maximum Distance Between Centers: 59.05"
Main Spindle Speed Range: 5,000 RPM
Milling Speeds: 12,000 RPM
Spindle Nose: A2-6
X-Axis Travel: 25.39"
Y-Axis Travel: 9.84"
Z-Axis Travel: 62.99"
C-Axis Indexing: 0.001 Degree
B-Axis Indexing: -30 to +210/.001 Min Angle
Spindle Bore: 3.15"
Main Motor: 30 HP/ 20HP
Rapid Traverse (X-Axis): 1,968 IPM
Rapid Traverse (Y-Axis): 1,574 IPM
Rapid Traverse (Z-Axis): 1,968 IPM
Approximate Dimensions: 194" x 117" x 118"
Approximate Weight: 35,640 Lbs.
Equipped with:
C- Axis on both spindles
Sub Spindle
OSP-P300S-H CNC Control
80 Station Tool Changer
Auto Door with Dual Start
Touchsetter A for 2S
4’ Bar Support System
Y Axis
Chip Conveyor
Milling Capability
Chip Blaster High Pressure Coolant
Collision Avoidance Software
