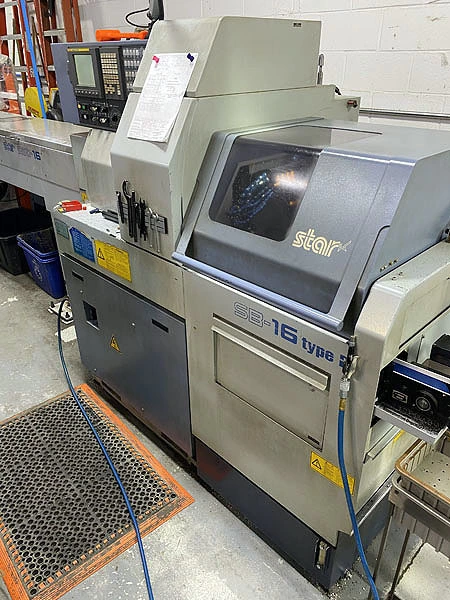

Star SB-16 Type D CNC Swiss Lathe, 2007, 3163

Description

STAR SB-16 Type D CNC Swiss Lathe
*Star ASO 12' Loader *
* New 2007 *
EQUIPPED WITH:
Star ASO 12' Loader

SPECIFICATIONS:

CAPACITY 0.625"
POWER 3.7 kW
RPM 1,000 RPM
# AXIS 6
SWISS, CHUCKER OR CONVERTIBLE? Swiss
MAIN SPINDLE INDEXING Full C
SUB SPINDLE INDEXING none
LIVE BACK WORKING TOOLS? No
B-AXIS? No
CONTROL CNC (FANUC 18ITB)
General Specifications for a Star SB-16D per brochure:

Control: Fanuc 18iTB
Axes: X1, Y1, Z1, C1, X2, Z2
Max. Machining Diameter: 5/8"
Max. Headstock Stroke:
Std: 8"
Revolving Guide Bushing: 6 3/32"
Tooling: 2 Live/6OD (3 Live/5OD:OP)
4ID / 4 Back working
4 Rear end working tools
Main Spindle:
Max Speed: 10,000 rpm
Motor: 2.2kw (cont.)/ 3.7 kW (15 min)
Indexing: 15 degree (C-axis optional)
Live Tools:
Max. Speed: 7,500 rpm
Motor: 0.4kw
Sub-spindle:
Max. Diameter: 5/8"
Max. Length for Ejection: 3 5/32"
Max. Parts Projection Length: 1 3/16"
Max. Speed: 8,000 rpm
Motor: 1.0kW
Dimensions (l x w x h, approx): 73" x 42" x 69"
Weight (approx): 3750 lbs
